How To Install an 11MODE Exhaust Controller

Es sind nur 3 einfache Schritte nötig, um Ihr Auto auf 11 zu bringen!

Wir müssen darauf hinweisen, dass wir die Installation durch einen qualifizierten Fachmann empfehlen.

Bevor es losgeht

Es wird empfohlen, das Auto mindestens 10 Minuten lang abgeschlossen und vollständig ausgeschaltet zu lassen, bevor Sie die Stecker ziehen, und dabei den Schlüssel wegzulegen, damit das Auto genügend Zeit hat, vollständig abzuschalten.

STEP 1

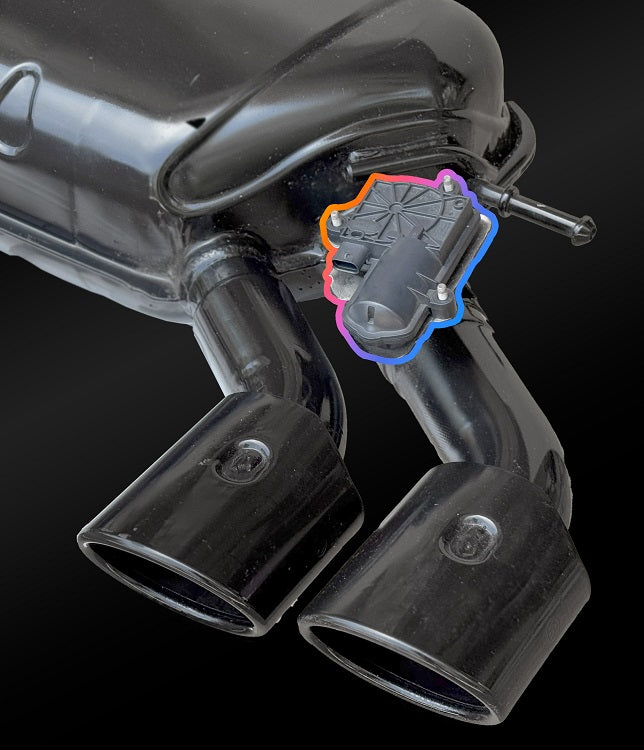

Locate exhaust valve/s

Locate the exhaust valve motor and connector.

Depending in the model, you should be able to access them with the car on the ground, otherwise you may prefer to use ramps. Be sure to follow all safety precautions set by the equipment manufacturers.

On some models, you may need to remove plastic trim panels to access the valve motors.

FAQ - Help finding exhaust valves

STEP 2

Unplug connector

With the car completely powered off, disconnect the factory connector.

(Your connector may look different to connector shown.

Most connectors have a locking tab that has to be released first. Then pinching the connector will allow it to be removed.

FAQ - Help removing connector

STEP 3

Plug in connector

Plug the factory connector into the Exhaust Controller and press in the connector locking tab if it has one. You can usually hear a click sound as it connects.

Please make sure the connector is clean and dry. Dirt and moisture on and inside the connector or actuator can cause problems in the future.

If the locking tab isn't able to be pressed in, then the connector may not be connected properly.

The connector should not be able to come out.

FAQ - Help plugging in connector

STEP 4

Plug in controller

Plug the Exhaust Controller into the exhaust valve motor, and press in the locking tab. You can usually hear a click sound as it connects.

It should not be able to come out when pulling on the controller body or connector (do not pull the wiring).

FAQ - Help plugging in connector

STEP 5

Quick check

Take a moment to check that any part of the controller or wiring is not near the hot exhaust system, near anything sharp or where it could rub.

Note: if there's not enough space around the controller, where it's too close to the exhaust, something hot or where the controller or wire can rub, you can extend the controller (how to video here) and mount it elsewhere where it is more safe.

Please note improper installation can cause damage and is not covered under warranty.

FAQ - Help with clearance

STEP 6

Send it

Repeat these installation steps for the other side if necessary. Both Exhaust Controllers can be used for either the left or right side.

Power on your car:

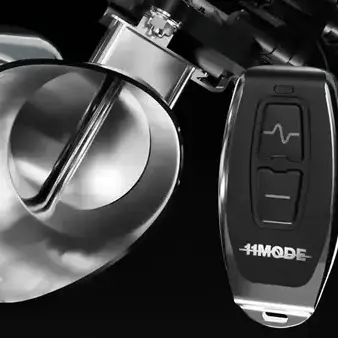

1. Press the ON ( ∿ ) button on the remote to keep the valves fully open
2. Press the OFF ( — ) to revert back to factory control

You may sometimes need to cycle the ON an OFF buttons a couple of times after powering on the car for the normal valve calibration sequence if necessary.

FAQ - Help how does it works

STEP 7

Testing the controllers

Steps to test the controllers:
1. Start your car and leave the controller OFF.
2. Set the drive mode to the quietest mode (eco / comfort etc.).
3. Wait for the valves to close, then visually confirm they are closed*. You may need to use a torch to see inside.
4. Press the remote ON ( ~ ) button - the valves will open.
5. Press the remote OFF ( — ) button - the valves will return back to normal / controlled by the car (closed).

* If the valves are not confirmed to be closed first, the controller will look unresponsive, but it is simply switching between ON (valves kept open) and OFF (valves returned to normal - still open).

Points to remember:
- They will keep the valves fully open in any mode.
- They do not force the valves closed (FAQ).
- If the valves are already open, the controller will not move the valves.
- They default to OFF when the car is powered off (FAQ).
- If the car was not powered off fully when installing, it could store an error code or cause a CEL (FAQ).
- See note for some Mercedes-Benz models.

View Full Testing Guide

Install Examples from Customers

See more @go11MODE on Instagram

Common Install Questions

View FAQ

Installation Warning

Avoid routing wires or components near hot surfaces, moving parts, or areas where abrasion can occur. Improper installation can cause damage and is not covered under warranty.
